1. An introduction of the products we have processed using our machining center and NC lathe.
2. We can achieve a surface roughness of Rz 0.2 or greater in our lapping operations.
【Manufacturing Performance History】
・Electronic and IC related parts: pallet bases and parts for IC chip carriers, etc.
・Parts related to lithium batteries
・Parts related to special starter devices
Note: The reference price does not include the material and processing fees.
※Click the image to enlarge.

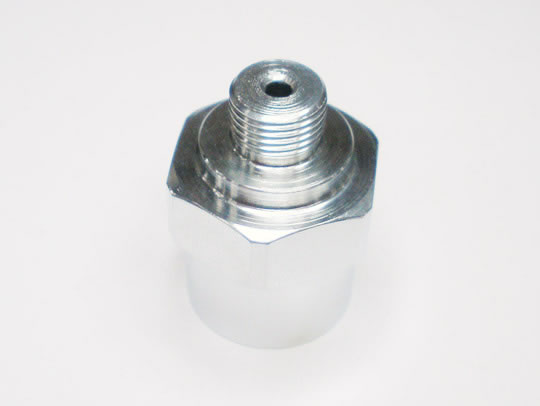

| materials: | S45C |
|---|---|
| Configuration: | Ø22×33 |
| Accuracy: | ±0.02 Class 2 gauging for a thread pitch gauge |
| Reference: | 1800 yen each when manufacturing 20 piece lot |
| materials: | HPM1 |
|---|---|
| Configuration: | 34×50×50 |
| Accuracy: | ±0.02 |
| Reference: | 17000 yen each when manufacturing 30 piece lot |
| materials: | HPM1 |
|---|---|
| Configuration: | 12×46×95 |
| Accuracy: | ±0.02 Pitch 0.02 |
| Reference: | 16500 yen each when manufacturing 15 piece lot |

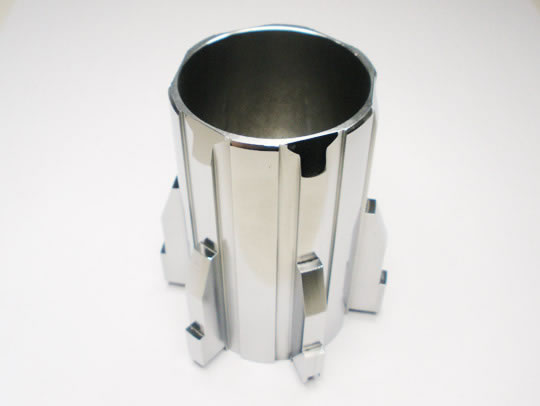

| materials: | NAK55 |
|---|---|
| Configuration: | Ø70.8×83.5 |
| Accuracy: | Squareness: 0.02 lapping |
| Reference: | 24000 yen each when manufacturing 30 piece lot |
| materials: | YH75 |
|---|---|
| Configuration: | 6.2×35.5×157.5 |
| Accuracy: | ±0.02 Flatness0.02 |
| Reference: | 12500 yen each when manufacturing 10 piece lot |

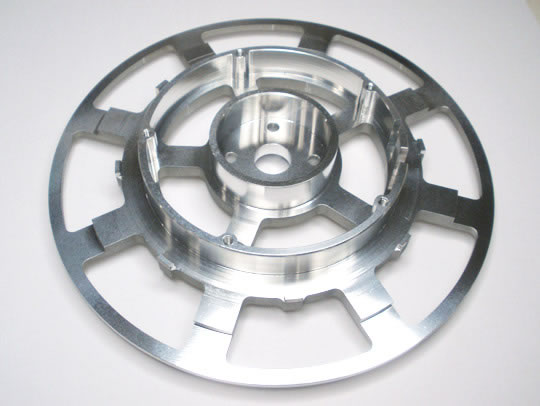

| materials: | A2017 |
|---|---|
| Configuration: | Ø170×24.5 |
| Accuracy: | Flatness0.05 |
| Reference: | 32500 yen each when manufacturing 3 piece lot |

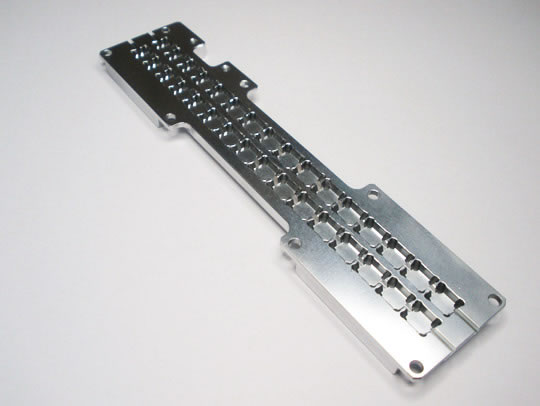

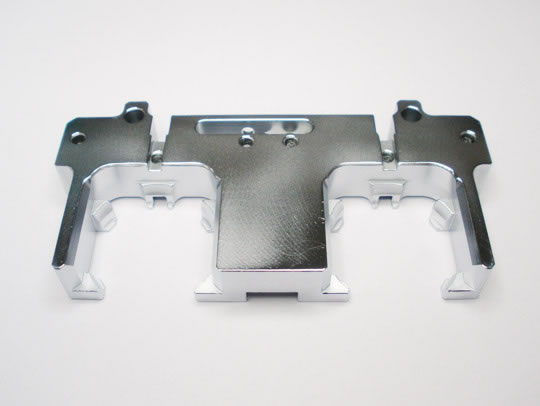

| materials: | A6061 |
|---|---|
| Configuration: | 36×94.5×143.5 |
| Accuracy: | ±0.02 |
| Reference: | 25000 yen each when manufacturing 20 piece lot |

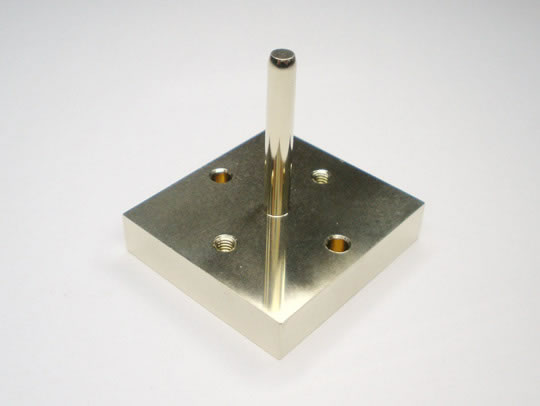

| materials: | Brass |
|---|---|
| Configuration: | 40.5×42.5×43 |
| Accuracy: | Squareness:0.01 |
| Reference: | 3000 yen each when manufacturing 50 piece lot |

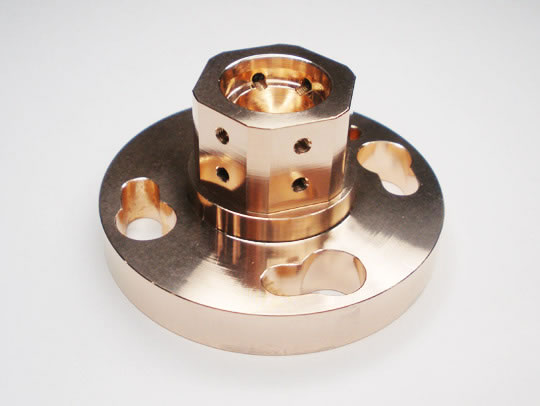

| materials: | Chromium copper |
|---|---|
| Configuration: | Ø66×33 |
| Accuracy: | ±0.025 |
| Reference: | 3500 yen each when manufacturing 300 piece lot |

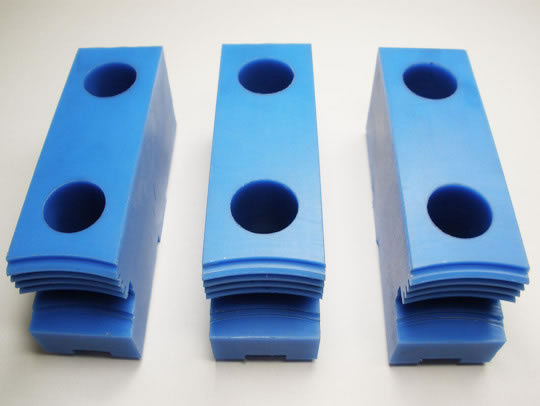

| materials: | MC nylon |
|---|---|
| Configuration: | 32×45×100 |
| Accuracy: | Less than 0.02 runout for gauge processing |
| Reference: | 7500 yen each when manufacturing 3 piece lot |

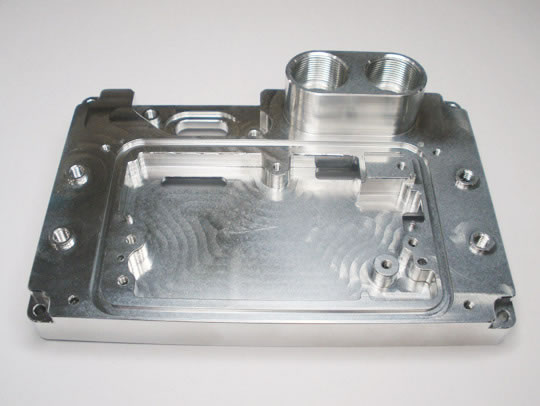

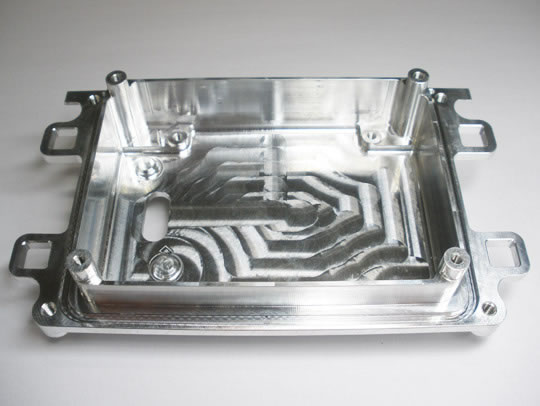

| materials: | A6061 |
|---|---|
| Configuration: | 46.5×90×152 |
| Accuracy: | flatness0.05 Use caution when handling exterior |
| Reference: | 32000 yen each when manufacturing 20 piece lot |

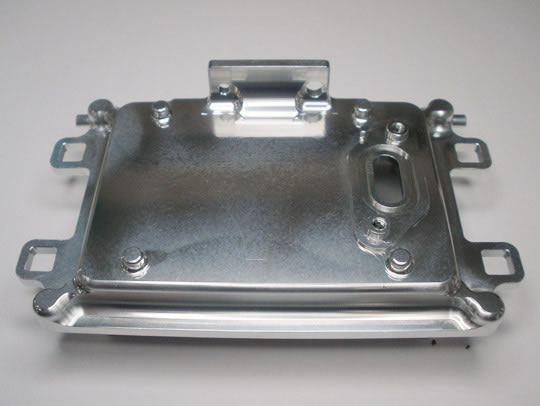

| Rear side |
|---|
